In modern mining operations, the efficient and stable performance of large-scale equipment such as belt conveyors, hoists, pumps, and fans is crucial. Traditional fixed-speed motor drives suffer from high starting currents, excessive energy consumption, and strong mechanical shocks. The advent of mining high-voltage explosion-proof frequency converters has revolutionized the industry by enhancing control precision, significantly reducing energy consumption, and ensuring compliance with safety standards in hazardous environments like coal mines and metal mines.

This article provides an in-depth analysis of working principles, key technologies, core advantages, and industrial applications of mining high-voltage explosion-proof frequency converters.

1. Overview of Mining High-Voltage Explosion-Proof Frequency Converters
1.1 Definition

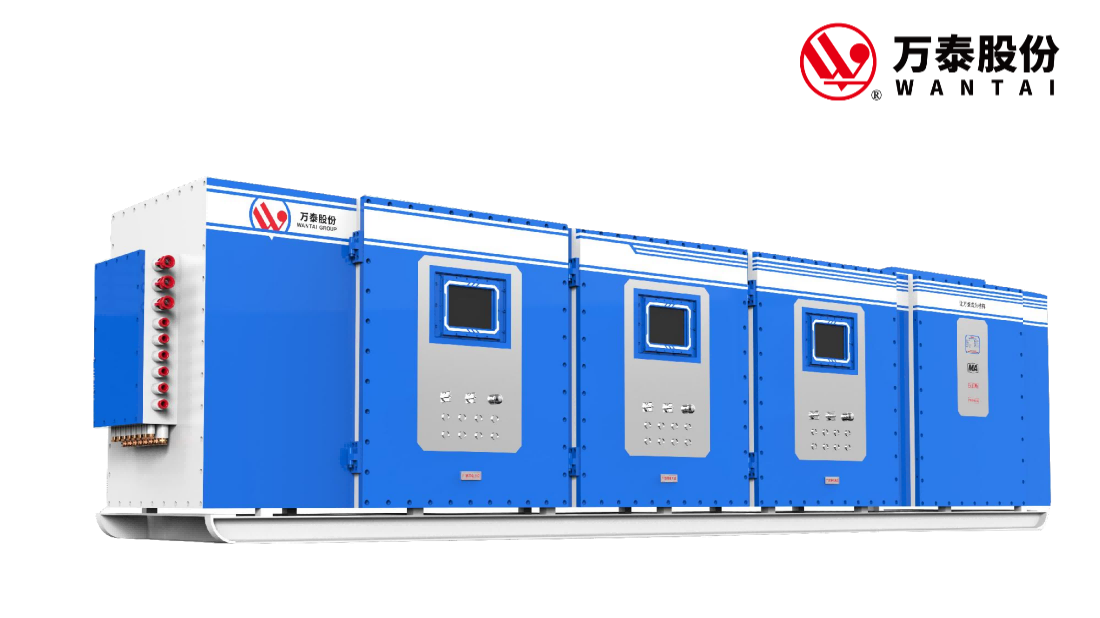

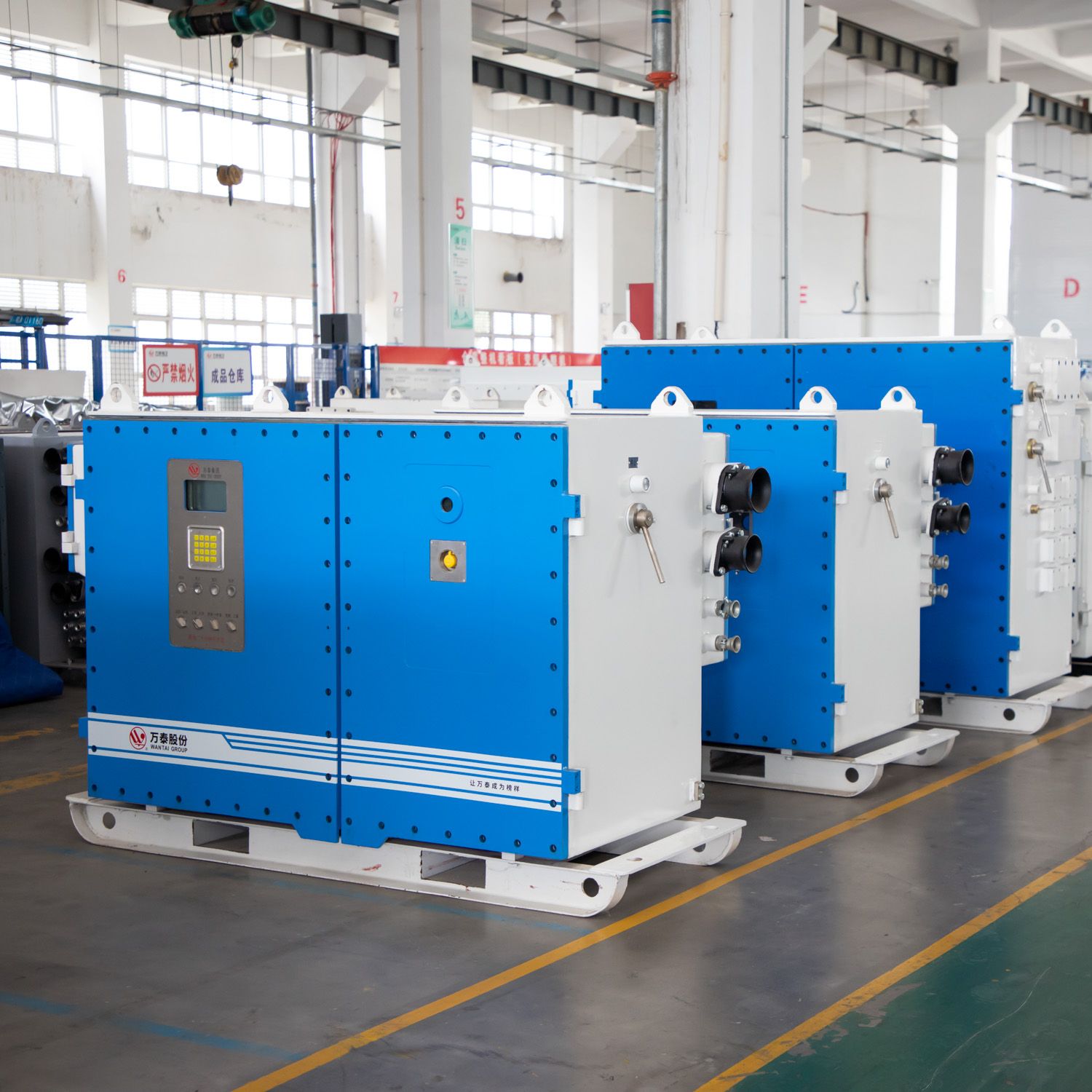

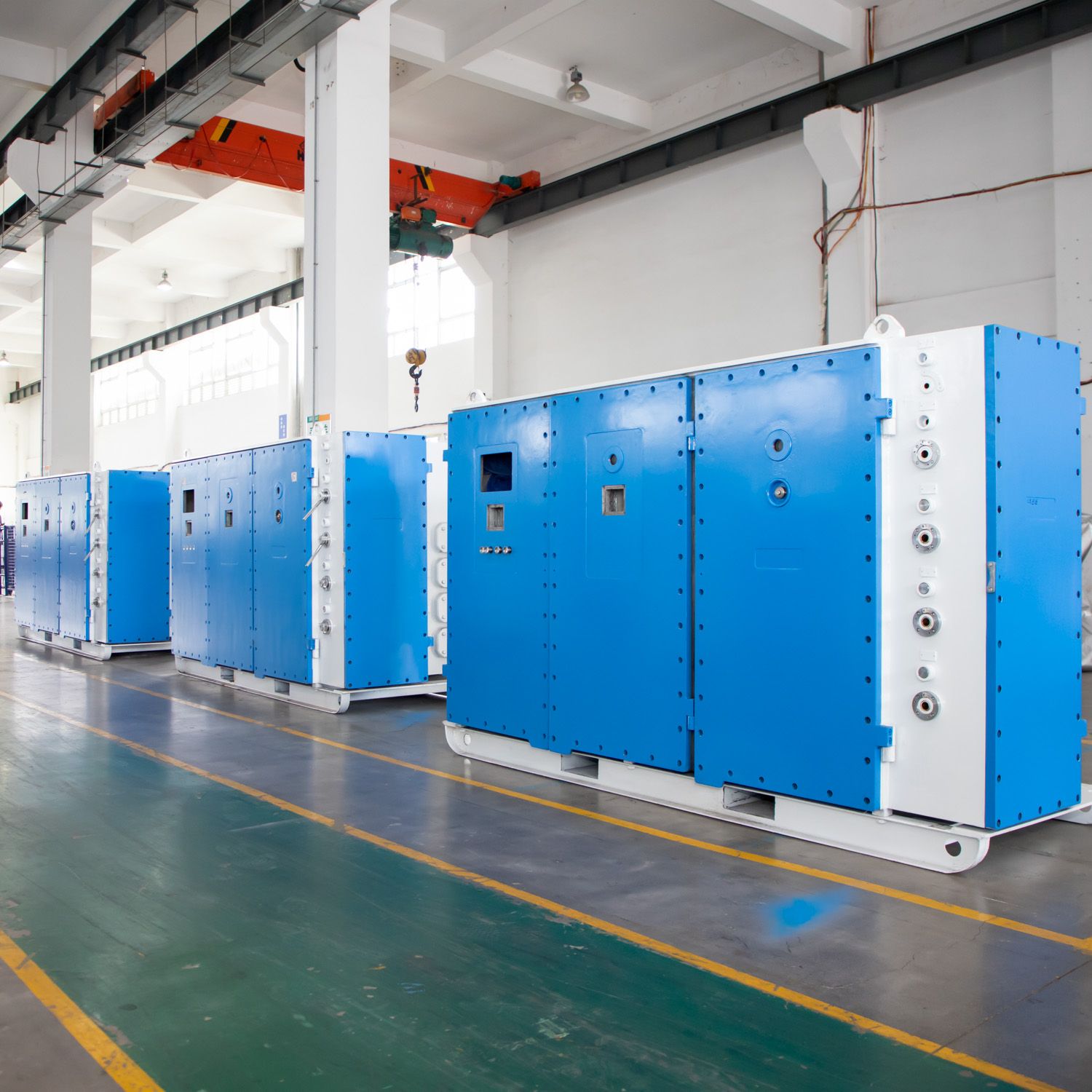

A mining high-voltage explosion-proof frequency converter is a specialized high-voltage (typically 6kV/10kV) AC drive system designed for harsh mining environments. It features explosion-proof protection, energy-saving capabilities, and intelligent control, making it suitable for flammable, dusty, and humid conditions in underground mines.

1.2 Key Applications

• Belt conveyors: Soft start and speed regulation reduce mechanical shock and save energy.
• Mine hoists: Precise speed control improves safety and efficiency.
• Main drainage pumps: Automatic speed adjustment based on water levels prevents frequent starts/stops and extends equipment lifespan.
• Local ventilation fans: Intelligent airflow regulation ensures safe underground ventilation.

2. Key Technologies of Mining High-Voltage Explosion-Proof Frequency Converters
2.1 Explosion-Proof Design

• Complies with Ex d (flameproof) or Ex i (intrinsic safety) standards (GB 3836, IEC 60079).
• Reinforced enclosure prevents internal sparks from igniting gas or dust.
• Sealed cooling system ensures stable operation in humid and dusty environments.

• Multilevel topology (e.g., H-bridge cascaded, three-level) reduces harmonics and improves output waveform quality.
• Vector control or DTC (Direct Torque Control) enables high-precision speed regulation under varying loads.

• Overcurrent, overvoltage, undervoltage, and short-circuit protection prevent equipment damage.
• Temperature monitoring and automatic load reduction avoid overheating failures.
• Self-diagnosis and remote monitoring via industrial Ethernet or RS485, integrating with mine automation systems.

• Heat pipe cooling or explosion-proof water cooling to address poor ventilation in underground mines.

• A coal mine implemented a 10kV explosion-proof frequency converter for its main conveyor system, achieving:
• 40% energy savings, reducing annual electricity costs by over $1 million.
• Reduced mechanical shock, doubling belt service life.
• Smart speed adjustment based on coal flow volume.

• A gold mine installed an explosion-proof frequency converter for its hoist system, resulting in:
• Smooth acceleration/deceleration, preventing wire rope damage.
• Precise positioning, improving loading/unloading efficiency.
• Explosion-proof compliance for hazardous underground environments.

5. Future Development Trends

• Higher Integration: Combining PLCs and smart sensors for unified control.
• Improved Cooling: Adoption of phase-change materials and liquid cooling.
• AI Optimization: Predictive maintenance using big data analytics.
• Renewable Energy Compatibility: Integration with solar and energy storage for greener mining.

6. Conclusion
Mining high-voltage explosion-proof frequency converters are essential for intelligent, efficient, and safe mining operations. As technology advances, their benefits in energy savings, precise control, and remote maintenance will become even more significant. Mining companies should prioritize explosion-proof certified, reliable, and smart frequency converters to enhance productivity and safety.
